How to Connect Switch

Nintendo Switch typically needs to be connected to its official dock to enter TV mode.
Only after receiving the required voltage and current will it output an HDMI signal.
XREAL 1S requires a DP signal and power supply, therefore a dedicated adapter solution is required.

How to Connect​

Nintendo Switch / Switch OLED must be used with the official XREAL Hub in order to connect to XREAL 1S.

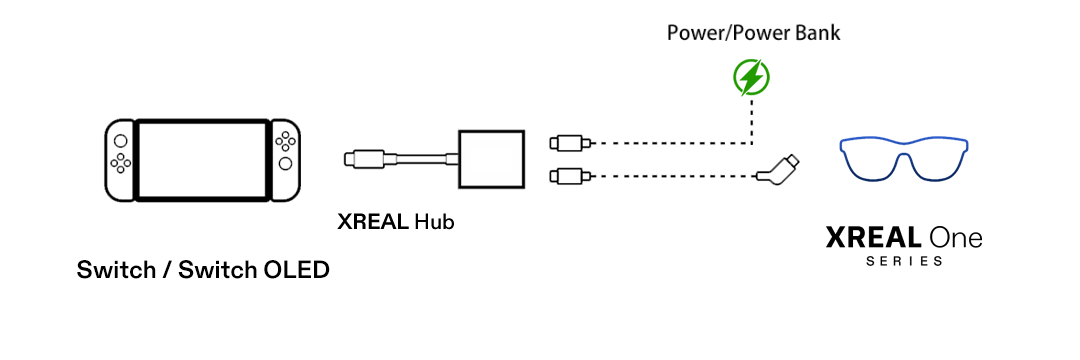

Switch Connection Illustration

Usage Tips​

  • To enter TV mode, the Switch must be powered first.
    Recommended sequence:

    1. Connect the XREAL Hub to a power source
    2. Plug the Hub into the Switch

  • Once the Switch enters TV mode, its built-in screen will turn off.
    At this point, connect the glasses to the Hub.

  • In TV mode, the Joy-Con controllers must be detached from the Switch console for use.

Switch Connection Method
