XREAL Game Controller User Manual

XREAL Game Controller is a wireless controller for XR.

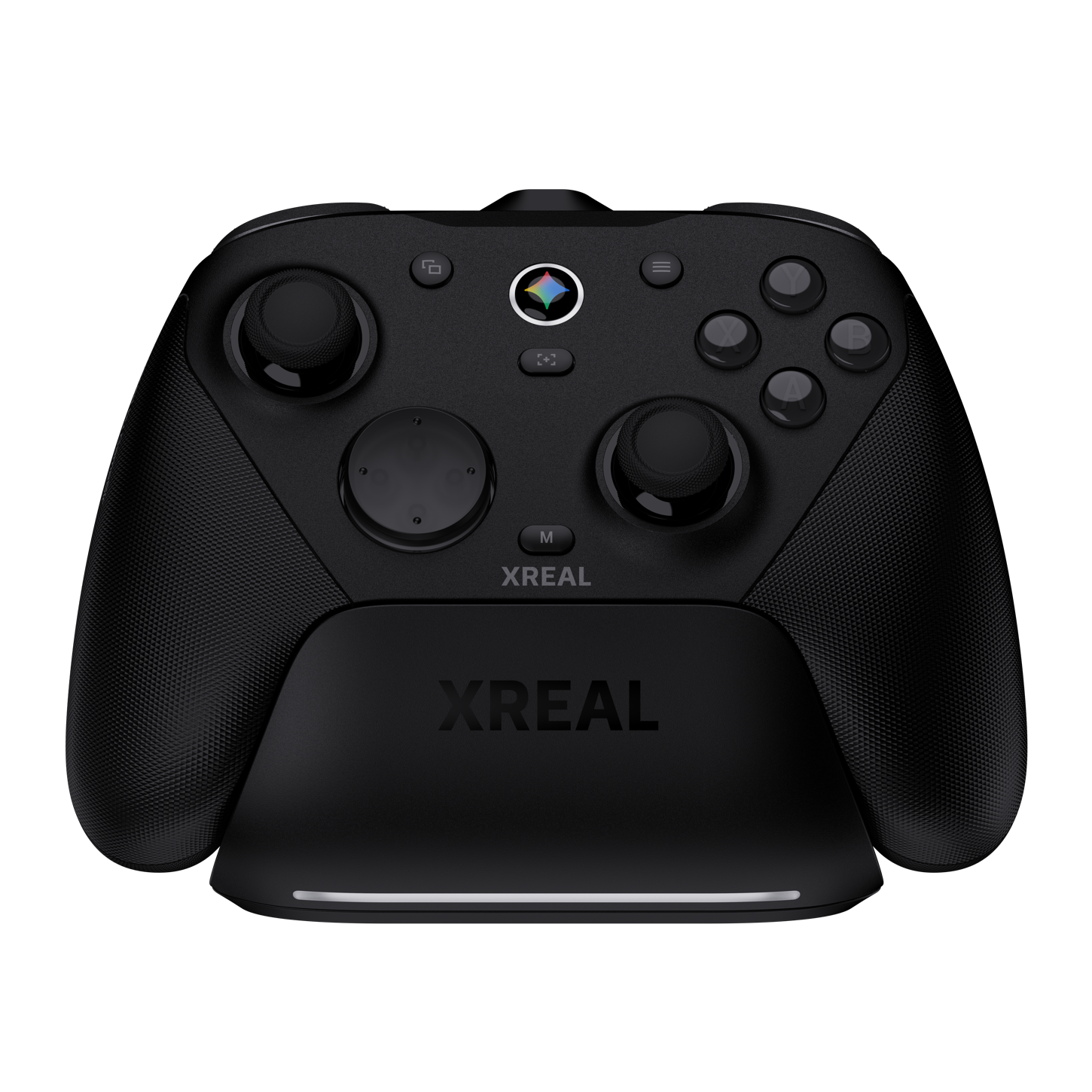

XREAL Game Controller with charging station

Compatibility​

  • Windows 10 or above
  • Switch 1 and Switch 2
  • Android 11.0 or above
  • Android XR
  • Apple devices (iPhone, iPad, and Mac)

In the Box​

  • XREAL Game Controller
  • Charging station
  • 2.4G receiver
  • USB-C cable
  • Replaceable D-pad
  • User manual

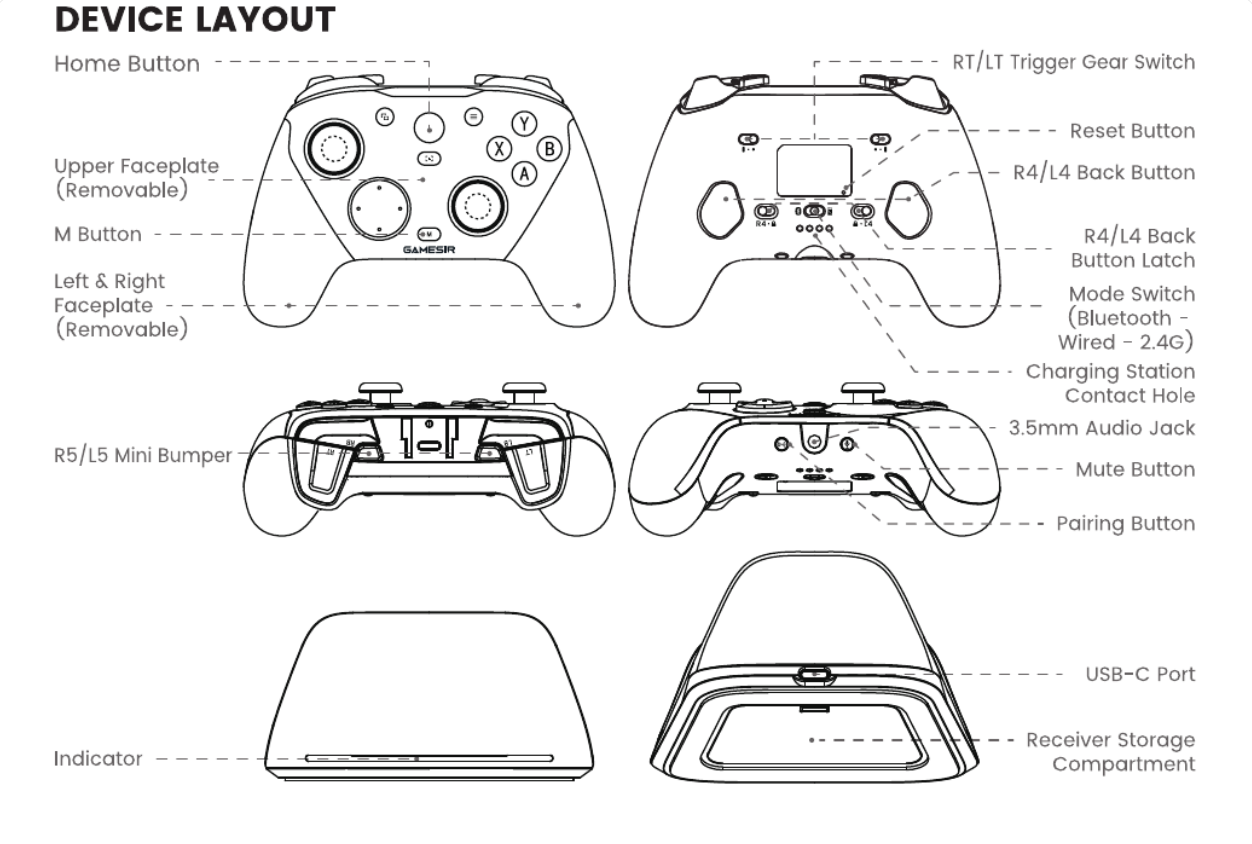

Device Layout​

XREAL Game Controller device layout

Controls and Ports​

LocationComponent
FrontHome button; M button; removable upper faceplate; removable left and right faceplates
Top and rearRT/LT trigger gear switches; Reset button; R4/L4 back buttons and latches; R5/L5 mini bumpers
Connection controlsMode Switch for Bluetooth, wired, and 2.4G modes; Pairing button
Audio3.5 mm audio jack; Mute button
Charging stationCharging-station contact hole; USB-C port; receiver storage compartment; indicator
